3D entity snaps

3D entity snaps allow you to specify a precise location on entities when prompted to select one or more points during a command.

Note: Different markers signal the precise location based on your chosen 3D entity snap mode. Check the Working with 3D entity snaps article for more details.

Vertex

Enables the cursor to snap to the closest vertex of a 3D entity and the control vertices of splines.

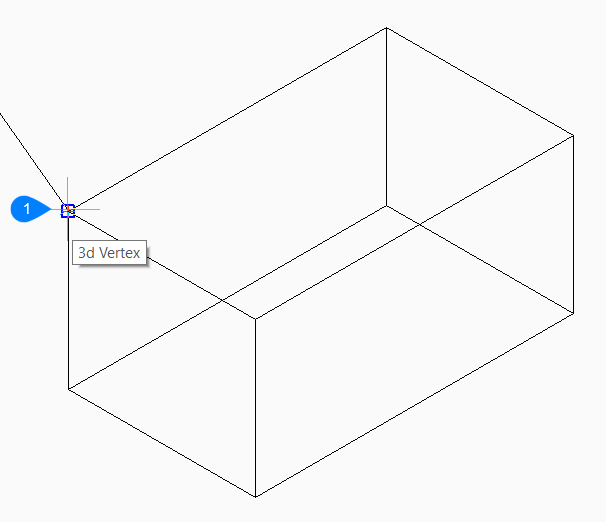

  1. Vertex 3D entity snap.

Midpoint

Enables the cursor to snap to the midpoint of 3D edges.

  1. Midpoint 3D entity snap.

Center of a face

Enables the cursor to snap to the geometric center of a face.

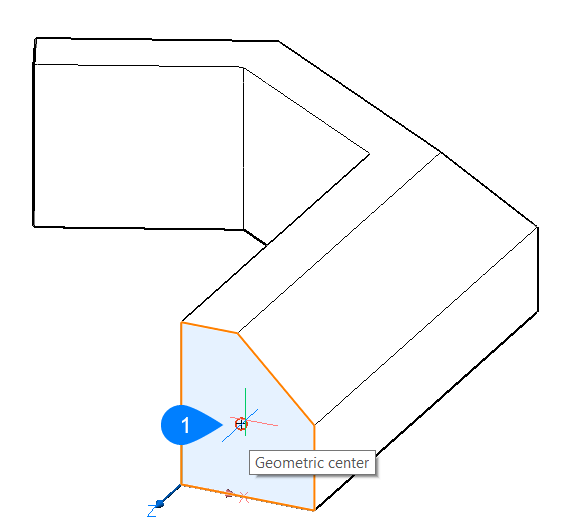

  1. Center of a face entity snap.

Perpendicular on a face

Enables the cursor to snap to a point perpendicular to a face.

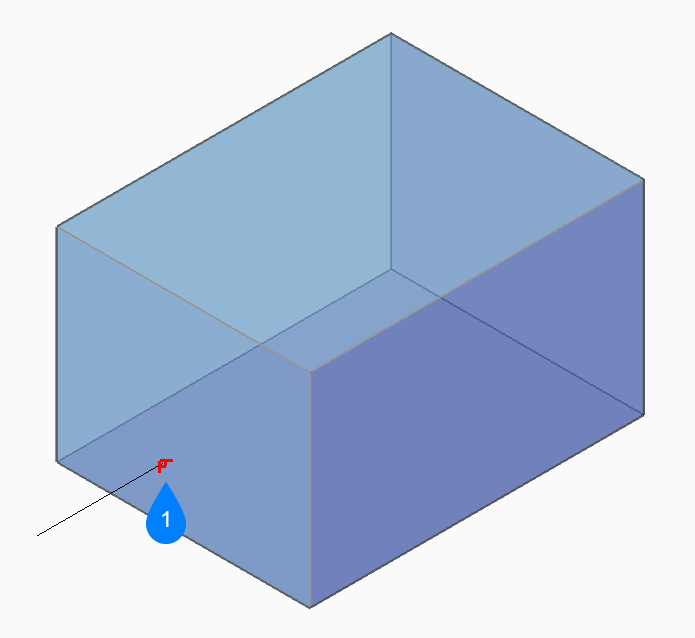

  1. Perpendicular to a face entity snap.

Nearest

Enables the cursor to snap to a point on a 3D entity that is nearest to the cursor.

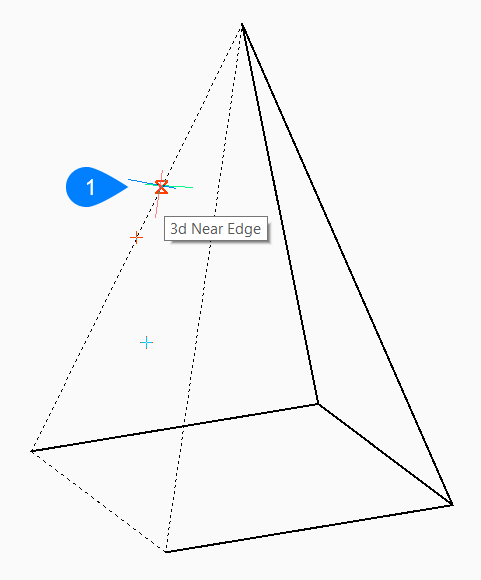

  1. Nearest 3D entity snap.

Knot

Enables the cursor to snap to knots on splines.

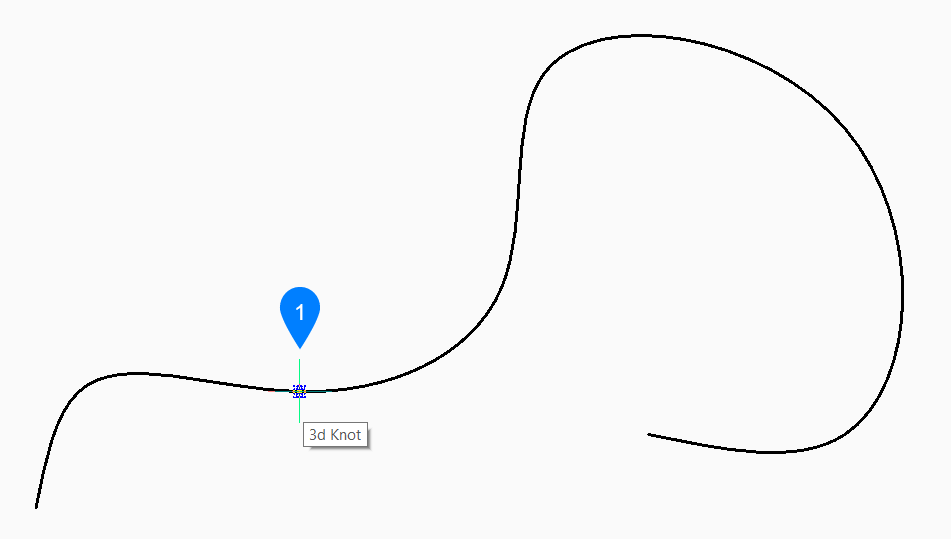

  1. Knot 3D entity snap.

Intersection

Enables the cursor to snap to the intersection of faces with linear entities, including lines, polyline segments, 3D edges, polar tracking lines, and entity snap tracking lines.

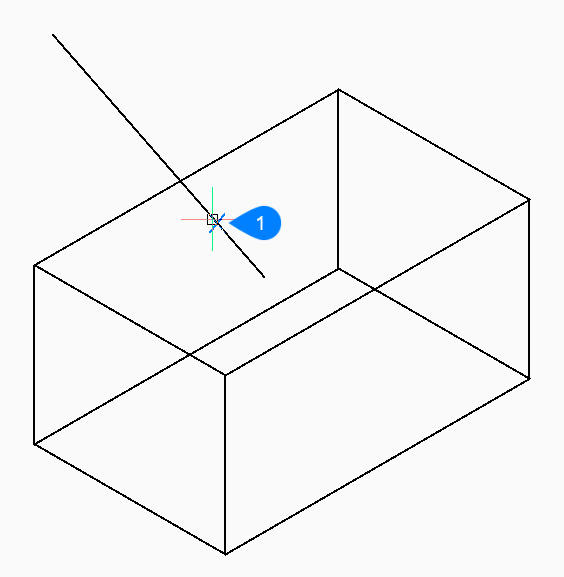

  1. 3D intersection entity snap.

Point Cloud

Enables the cursor to snap to the point clouds nearest point.

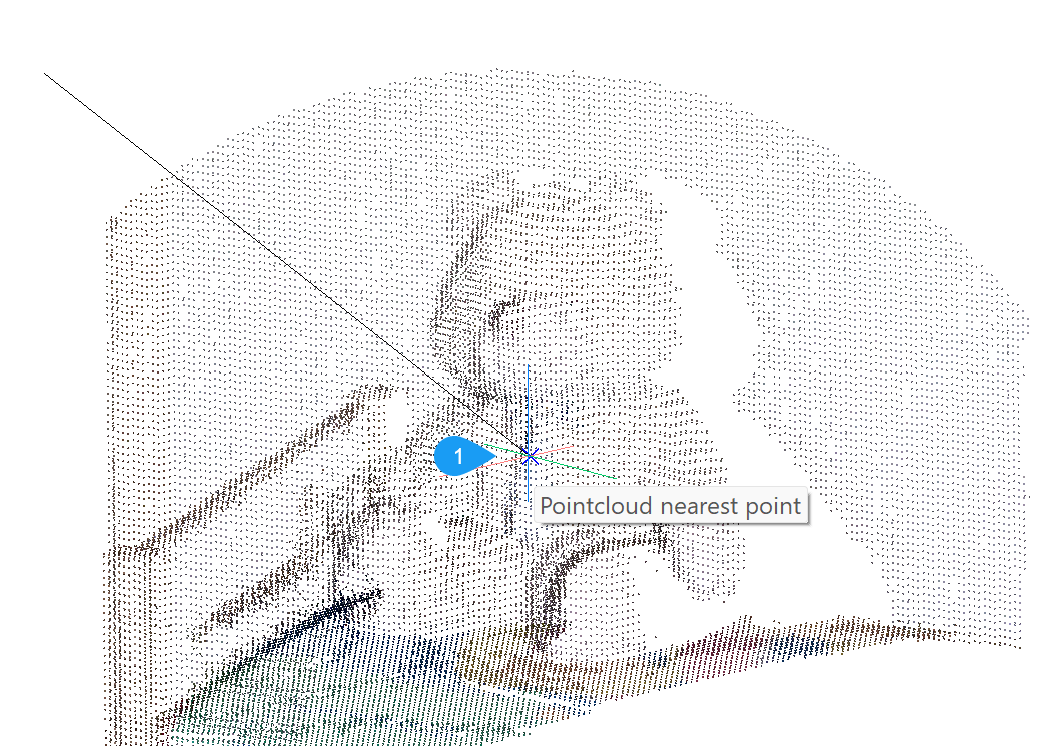

  1. Point cloud nearest point entity snap.
