3DPOLY command

Creates a 3D polyline.

BricsCAD Shape; BricsCAD Lite; BricsCAD Pro; BricsCAD Mechanical; BricsCAD BIM

Icon:

Alias: 3P

Description

Creates a single 3D polyline entity with multiple line segments by specifying the start and end point of each segment. Options allow you to undo and close the geometry.

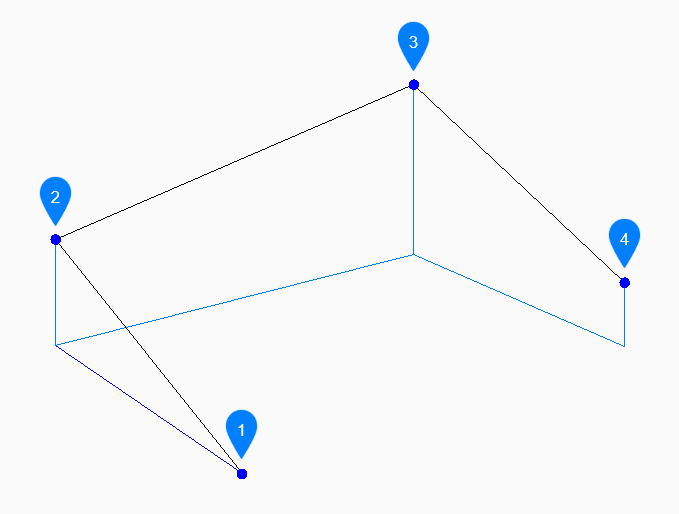

  1. Start
  2. Next
  3. Next
  4. End

Method

This command has 3 methods to begin creating a 3D polyline:
  • Start of polyline
  • Last point
  • Follow

You can continue adding unlimited segments until you press Enter to end the command.

Options within the command

Start of polyline
Begin creating a 3D polyline by specifying a start point then specify next point.
Last point
Begin creating a 3D polyline from the last point picked then specify next point.
Follow
Begin creating a 3D polyline from the last drawn arc or line segment, following its angle, then specify next point.

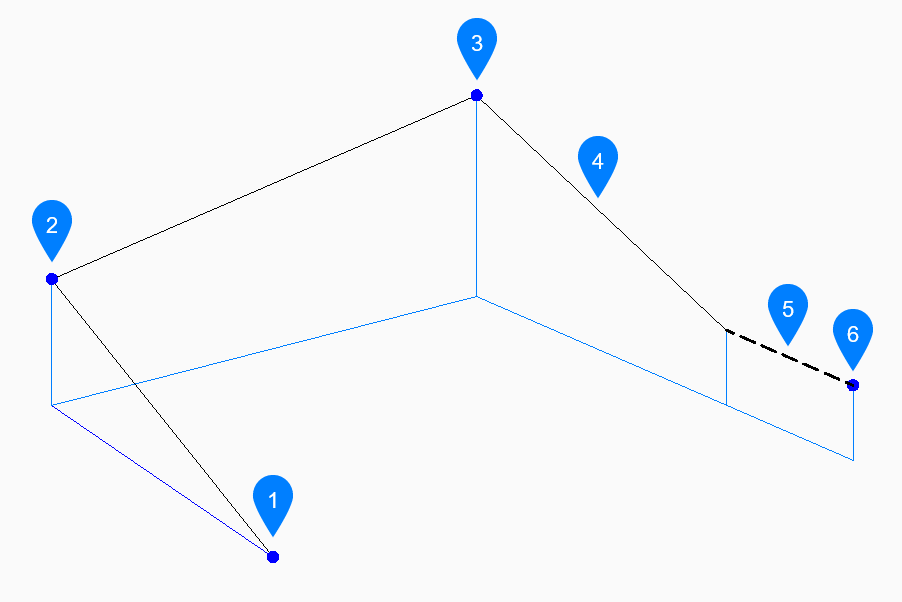

  1. Start
  2. Next
  3. Next
  4. Last Drawn Segment
  5. Follow
  6. End
Next point
Specify the next vertex of the polyline.

For the Follow option, specifies the length of the segment. Picking a point only determines the length since the angle follows the last segment.

Undo
Undo the last 3D polyline segment and continue drawing from its previous start point.
Close
Automatically draw a 3D polyline segment from the end point of the last segment to the start point of the first segment. This ends the command.

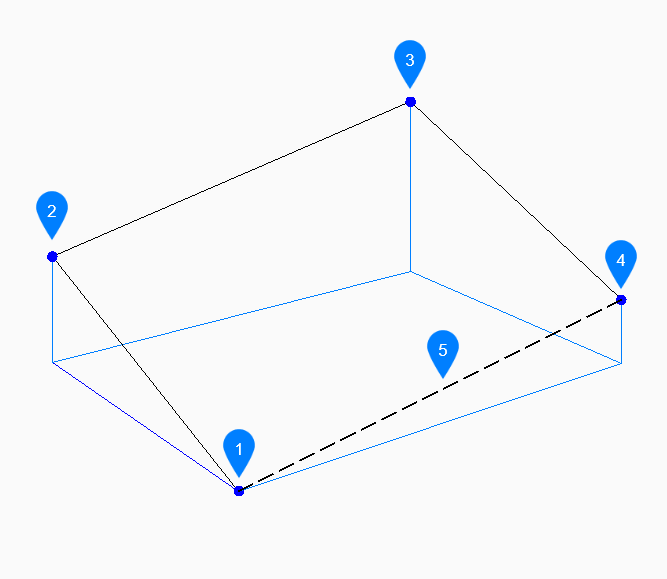

  1. Start/End
  2. Next
  3. Next
  4. Next
  5. Last drawn segment
