CORRIDOR command
Creates a corridor from a corridor template.
Icon:
Methods
There are two methods for creating a corridor:

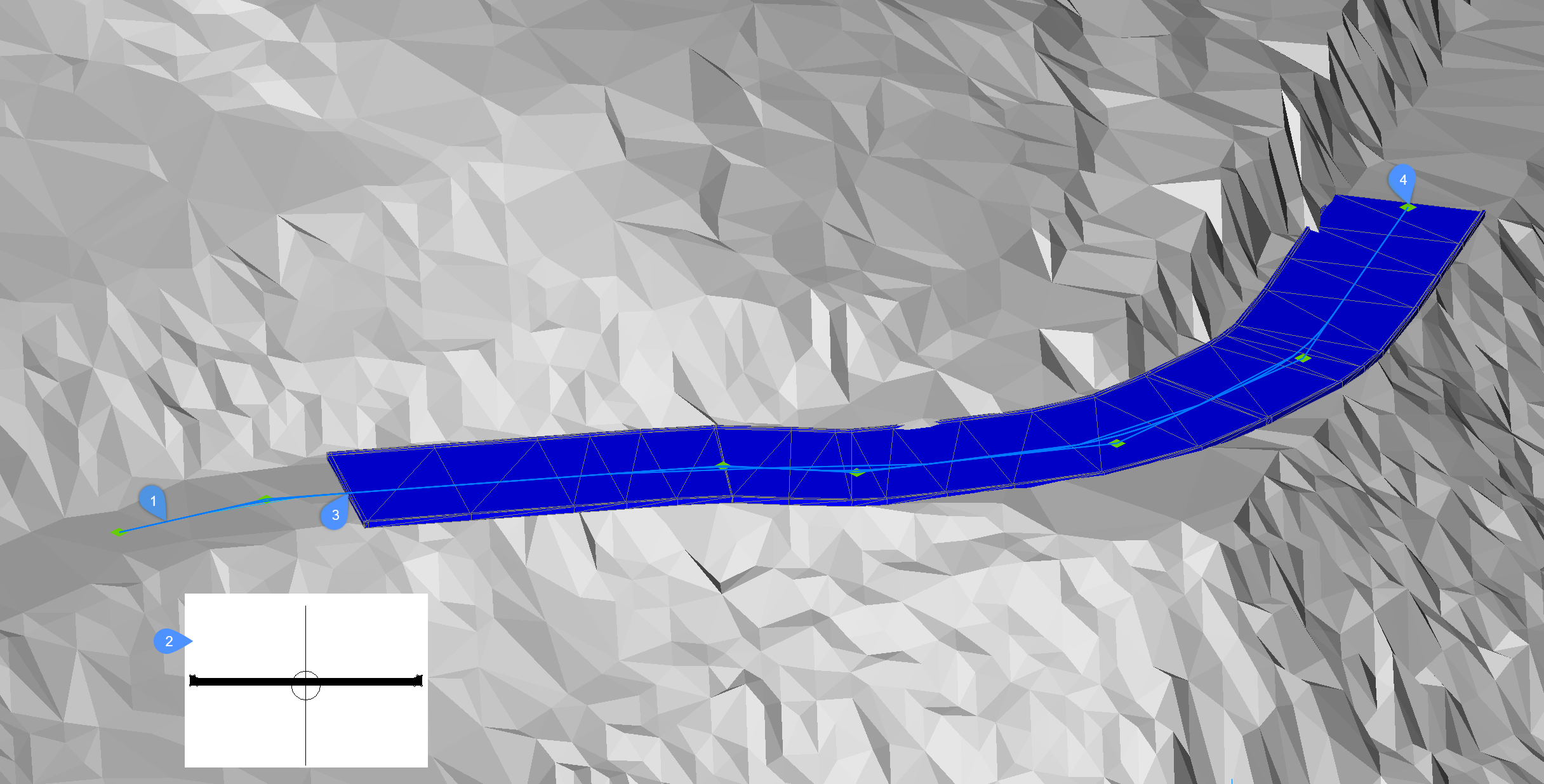

- Creates a corridor using a corridor template along an 3D alignment line.
- Select 3d alignment used as a corridor baseline (1).
- Select corridor template (2).
- Enter region start station (the starting point along the 3D alignment line) (3).
- Enter region end station (the ending point along the 3D alignment line) (4).
- Creates a simple corridor using a corridor template along a path defined by picking horizontal alignment PI points.
- Select TIN Surface
- Select corridor template
- Pick horizontal alignment PI point: pick as many horizontal PI points needed and press Enter to finish.
Options within the command
- create Simple corridor
- Creates a simple corridor using a corridor template along a path defined by picking horizontal alignment PI points.
- Predefined
- Sets the predefined corridor template and specifies the template position.
- Change template
- Allows to change the corridor template.
