DIMJOGLINE command

Applies or removes a jog line to a linear or aligned dimensions.

BricsCAD Lite; BricsCAD Pro; BricsCAD Mechanical; BricsCAD BIM

Icon:

Description

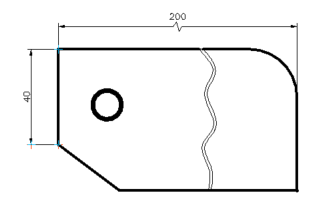

Applies a jog line to linear or aligned dimensions. The dimension should represent the actual dimension.

Method

Select the linear or angular dimension to add a jog and specify the jog location.

Options within the command

Remove
Removes the jog of a linear or alined dimension.
