ETRANSMIT command

Opens the Drawing Explorer dialog box with Dependencies selected.

Icon:

Description

Creates a package consisting of the drawing file and all its dependencies, such as external references, images, font files, plot configuration files, plot style tables, and font map files.

Methods

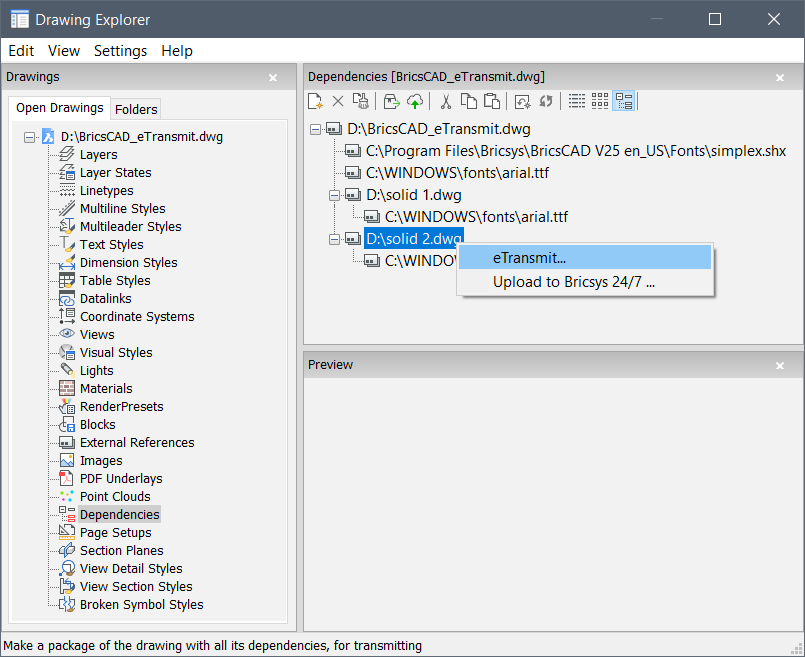

Opens the Drawing Explorer dialog box with Dependencies category selected to view and modify all dependencies in the current drawing.

Context Menu Options

eTransmit
Starts the eTransmit procedure. The eTransmit dialog box opens, which lists the files to include (see eTransmit dialog box article).
Upload to Bricsys 24/7
Opens the Upload to Bricsys 24/7 dialog box to allow you upload the drawing and its dependencies onto Bricsys 24/7 (see Upload to Bricsys 24/7 dialog box article).

Options within the command

New
Add another drawing to the eTransmit procedure. The File dialog box opens to let you choose another drawing.
Delete
Deletes Dependency definitions from the drawing.
