SETTINGS command

Opens the Settings dialog box.

BricsCAD Lite; BricsCAD Pro; BricsCAD Mechanical; BricsCAD BIM

Icon:

Description

Opens the Settings dialog box to view and modify system variables.

Note:
  • When the system variable is changed to a value other than the default value, it is marked with a blue bullet.
  • Most, but not all, system variables are available in the Settings dialog box. You can modify all system variables using the SETVAR command.

In the Settings dialog box, you can change values of system variables and user preferences.

Note: The new Settings dialog box is set as default. To change this, set the value of the USENEWSETTINGSDIALOG system variable to 0.

Search bar

Lists variables through a real-time search field when entering letters of their names or descriptions.

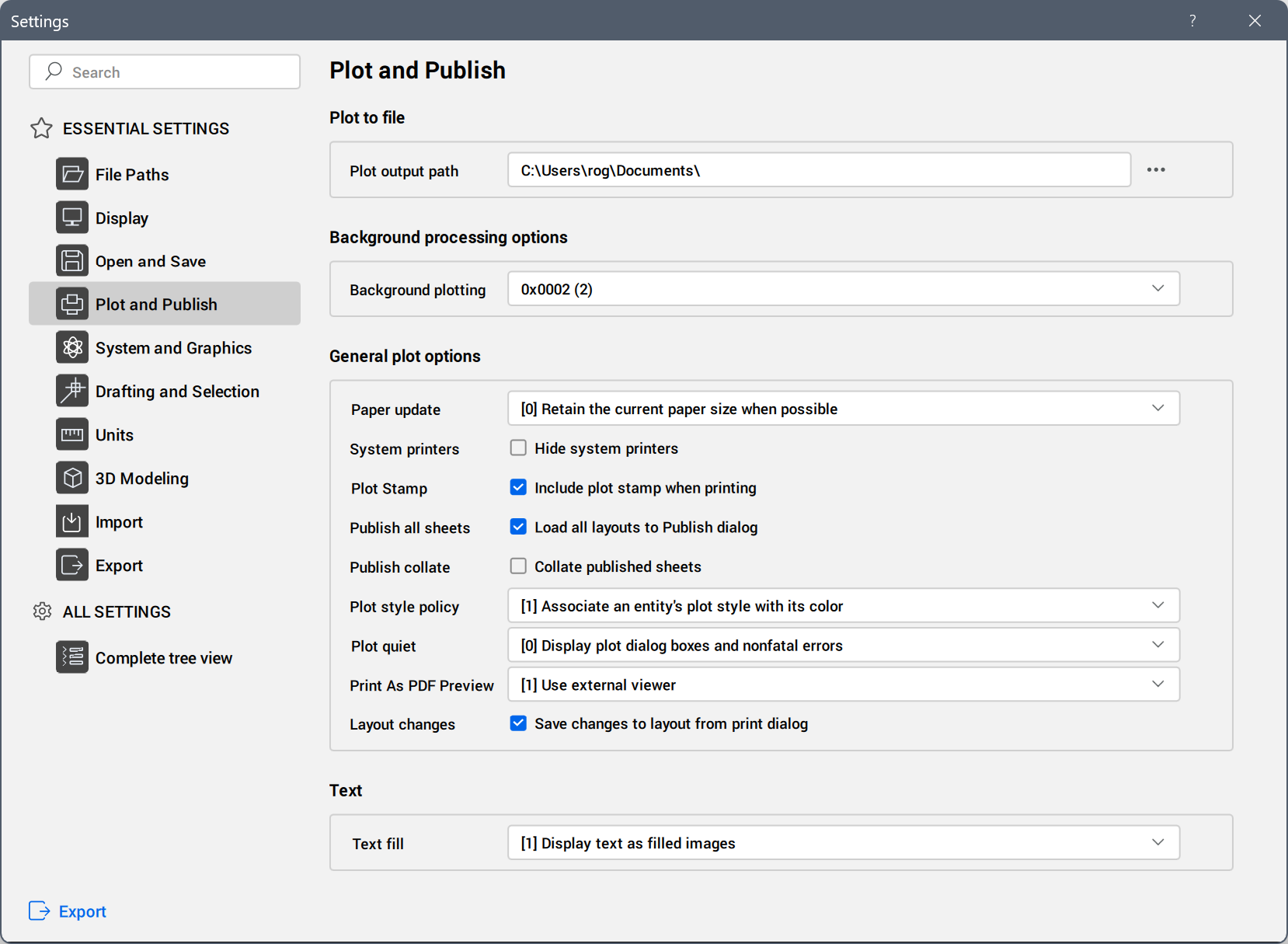

ESSENTIAL SETTINGS

Lists frequently used settings grouped under categories.

Click a category to display the corresponding settings or subcategories. If subcategories are present, click one to display the corresponding settings.

Note: The available settings categories depend on the BricsCAD® license level.

ALL SETTINGS

Lists settings in the Complete tree view category.

All settings
Lists all settings in a tree view.

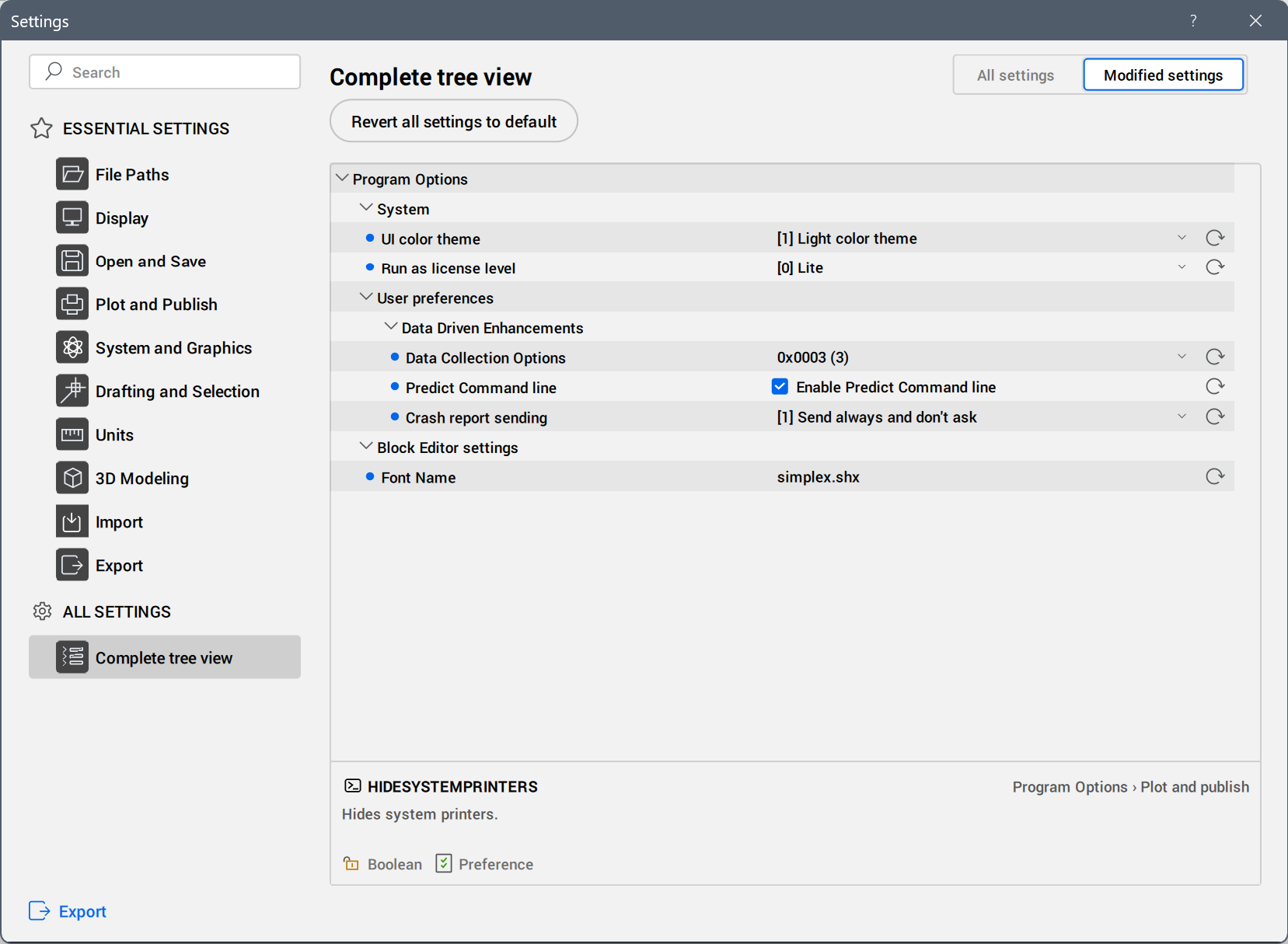

Modified settings
Lists all settings whose values ​​are different from the default marked with a blue bullet.

Click a setting to display the setting info at the bottom of the dialog box.

To revert the value of a modified setting to default, press the Revert setting to default value () button next to the setting value field.

To revert the values of all modified settings to default, press the Revert all settings to default button.

Export

Opens the Export Settings dialog box to save all settings and values to an CSV file.

Note: Settings that are stored in the drawing will not be exported.
