SMFLANGEBEND command

Allows to bend an existing flange along a line, obeying the k-factor for given bend radius.

BricsCAD Mechanical

Icon:

Options within the command

New line
Allows to draw a line to define the bend location.
Angle
Specifies the bend angle.
Radius
Specifies the bend radius.
Note: The default bend radius is defined by the Modeling/Bend Radius property in the Mechanical Browser for Sheet Metal.
Switch sides
Allows to move the part of the flange on the other side of the line or edge.
Toggle bend extents

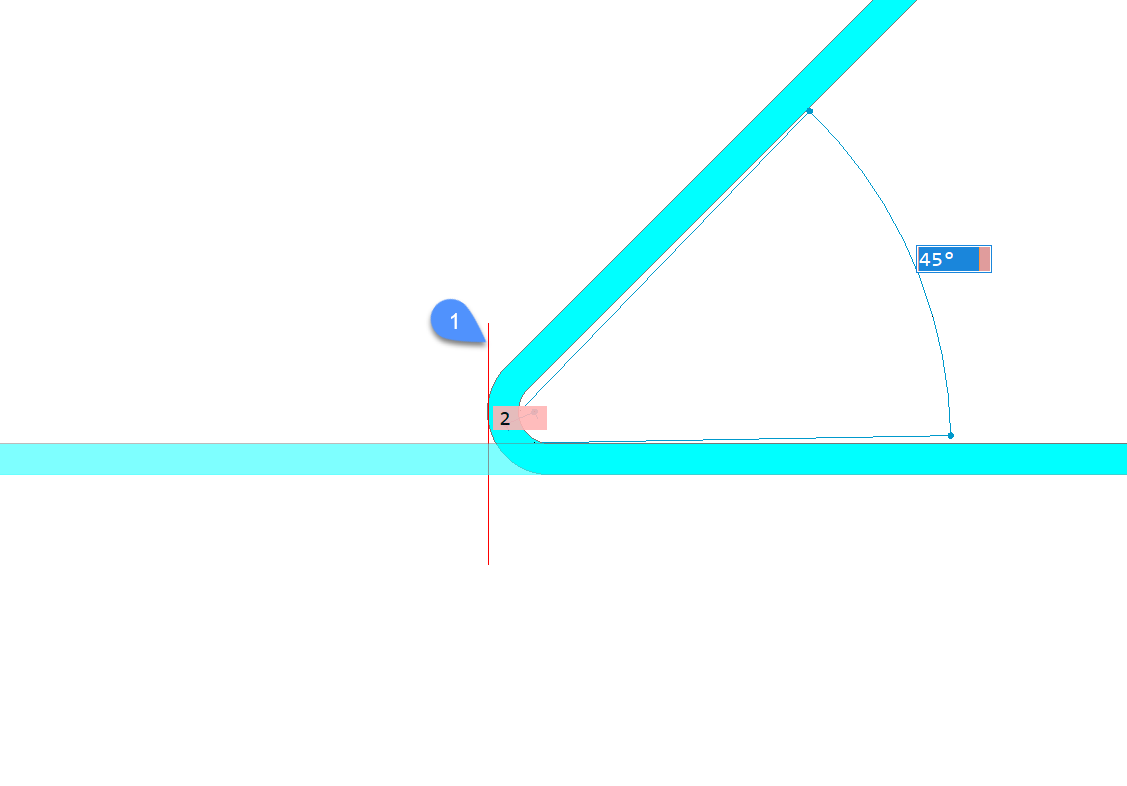

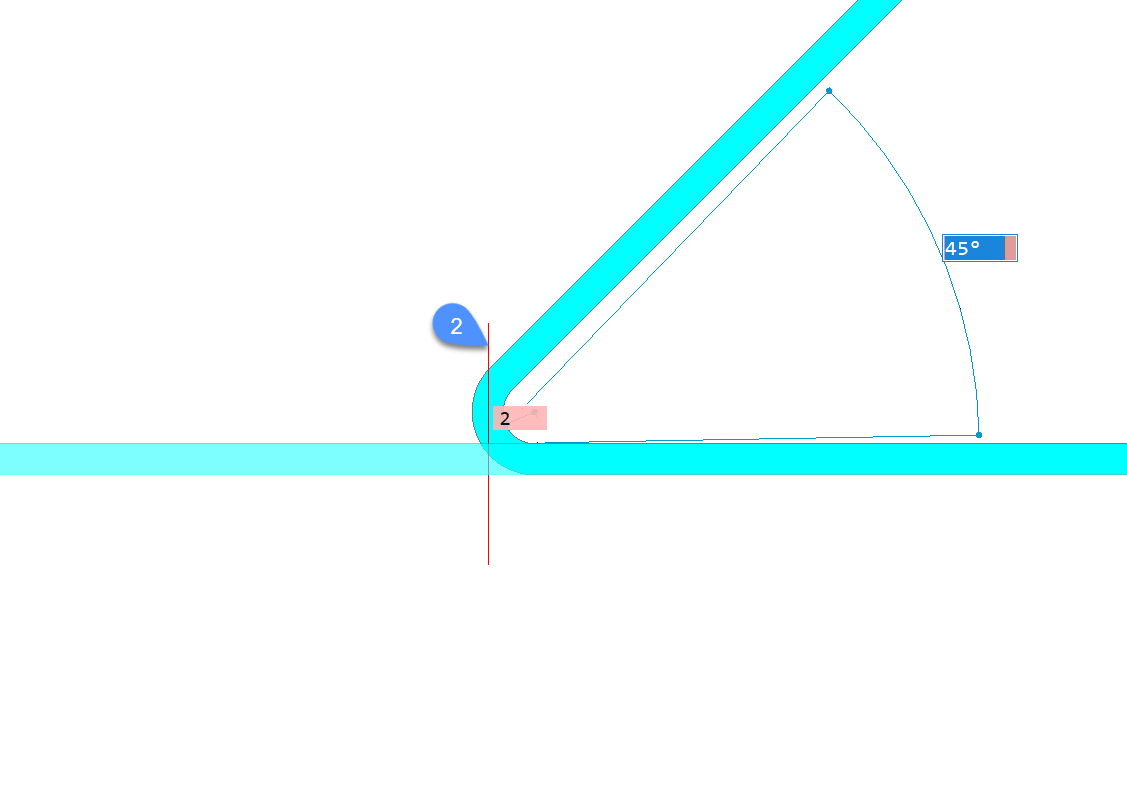

Toggles between keeping the bend extents (1) or not (2). Default is not.
ACcept
Creates the bend at the current angle and radius.
