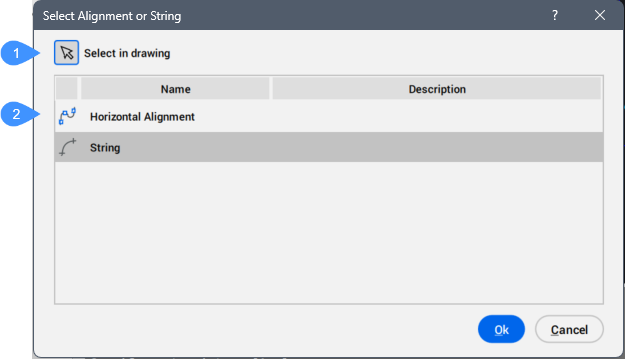

Select Alignment or String dialog box

Opens via: SECTIONLINES command > press enter key to select from list option

The Select Alignment or String dialog box allows you to select an alignment or a string for creating section lines.

  1. Select in drawing
  2. List of alignments and strings
Select in drawing
Allows you to select an alignment or a string, or by picking points on a TIN surface in the drawing .
List of alignments and strings
Allows you to select one available alignment or string from the list.
