ELEVATION system variable
Elevation

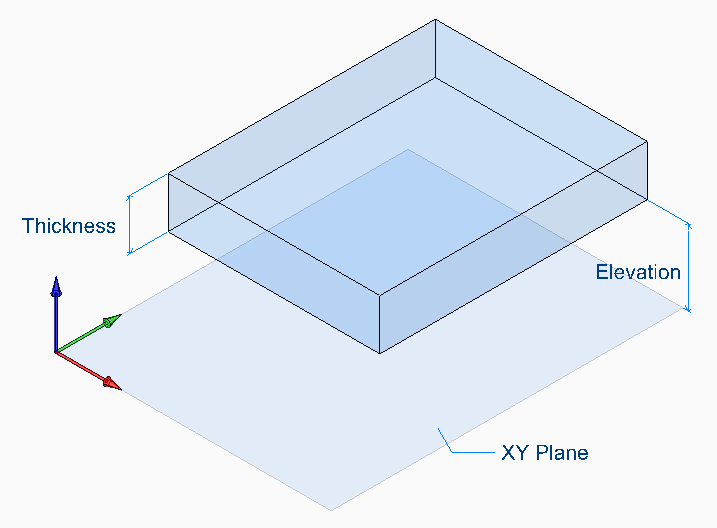

The elevation (Z-axis) for new entities, relative to the current UCS.
Type: | Real |
Saved in: | Drawing |
Default value: | 0.0 |
![](https://static.bricsys.com/help/images/V23/en_INTL/SV_elevation_01_V21.png)
The elevation (Z-axis) for new entities, relative to the current UCS.
Type: | Real |
Saved in: | Drawing |
Default value: | 0.0 |
