SPLINETYPE system variable
Spline type
Controls the curve type generated by the Spline option of the PEDIT command: Quadratic B-spline or Cubic B-spline.
| Type: | Short |
| Saved in: | Drawing |
| Range: |
5 to 6 |
| Default value: |
6 |
| Possible options: |

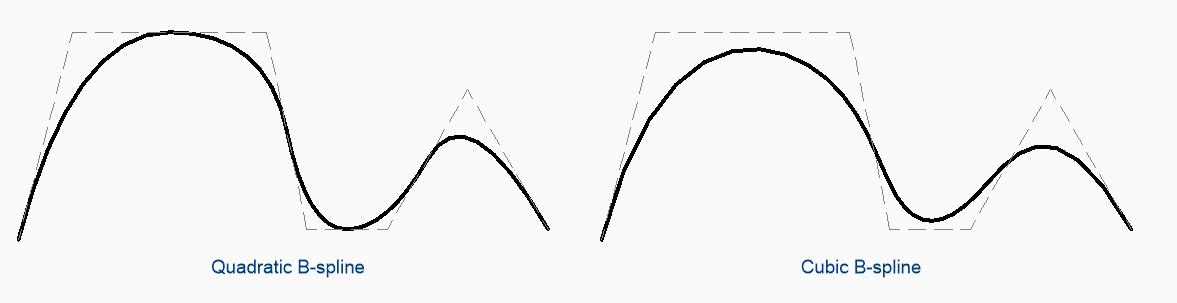

5: Quadratic B-spline 6: Cubic B-spline |
