Bricsys 24/7 2D Viewer

The Bricsys 24/7 2D Viewer allows you to view 50 file formats without additional software.

The supported file formats are:

Format File extension
Text asm, bat, c, css, cpp, cxx, gene, h, hxx, idh, idl, inl, java, log, lsp, rss, sql, tpl, text, txt, xml
Image bmp, emf, gif, jpg, jpeg, png, tiff, tif
Office doc, docx, dot, dotx, potx, pps, ppsx, ppt, pptx, xls, xlsx, xlt, xltx
CAD dgn, dwf, dwg, dxf
Other htm, html, pdf, xps

Xref compatibility

When working with drawings that use Xref files, 24/7 will recognize and automatically manage the links between the files and will make it possible to view the master file together with all its referenced files in the 2D viewer. To ensure the Viewer displays the complete drawing correctly, the files must be uploaded in the proper order and stored in the correct location:

  • All Xref files must be uploaded before the master file.
  • Referenced files must exist in the same folder or project with the master file.

Open the Bricsys 24/7 2D Viewer

  1. Make sure that a document details window is selected.
  2. Click Open in viewer.

    The Bricsys 24/7 2D Viewer opens.

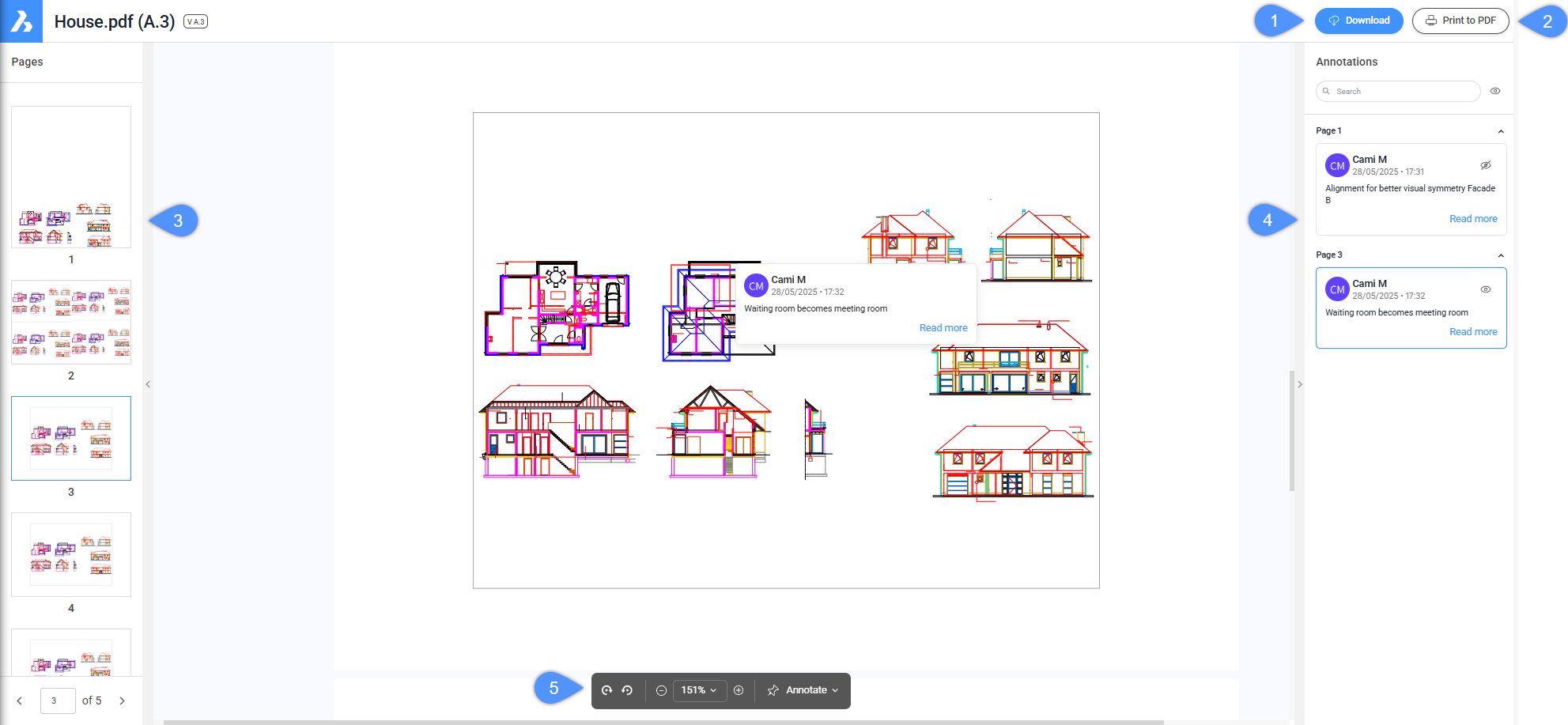

Navigation in Bricsys 24/7 2D Viewer

  1. Download
  2. Print to PDF
  3. Thumbnails
  4. Annotations pane
  5. Toolpalette
Download
Allows you to download the file to your download folder.
Print to PDF
Allows you to print the file to PDF.

The Print to PDF window opens. Select the items you want to print and click the Print button.

Thumbnails
A thumbnail is displayed for each available page. Click a thumbnail to open the corresponding page.

The selected thumbnail is highlighted, and the viewed area is indicated.

Click the arrow to show or hide the Thumbnails pane.

Annotations pane
Displays all the annotations added to the document.
Note:
  • You can use the Search bar to search for specific annotations. The list is shortened to display only the annotations that contain the entered sequence of characters.
  • Click the eye icon () to show or hide annotations.
  • Click the arrow to show or hide the Annotations pane.
Toolpalette
Contains a set of tools that let you manipulate the document.
Rotate
Allows you to rotate the document.
  • Click to rotate the document clockwise.
  • Click to rotate the document counterclockwise.
Zoom
Allows you to zoom the document.
  • Click to zoom out.
  • Click the arrow to display more options. You can choose between: Zoom to page, a specific zoom percentage, or Marquee zoom.
  • Click to zoom in.
Annotate
Allows you to add Rectangle, Ellipse, Line, or Arrow annotations.
