ATTEXT command

Opens the Extract Attributes dialog box.

BricsCAD Lite; BricsCAD Pro; BricsCAD Mechanical; BricsCAD BIM

Icon:

Alias: AX, DDATTEXT

Description

Opens the Extract Attributes dialog box.

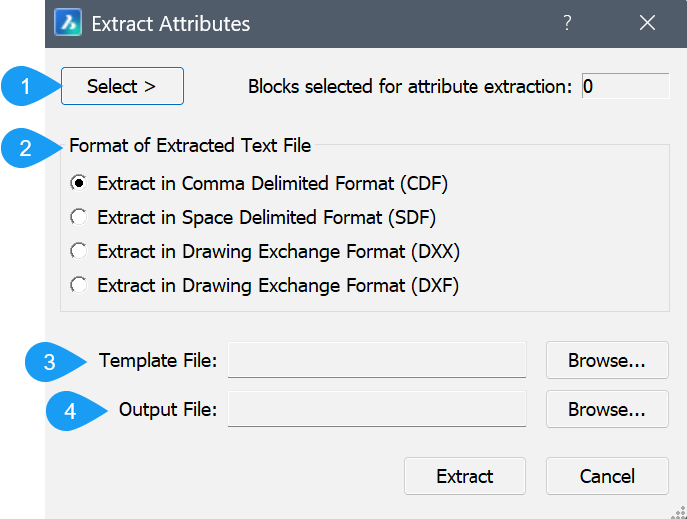

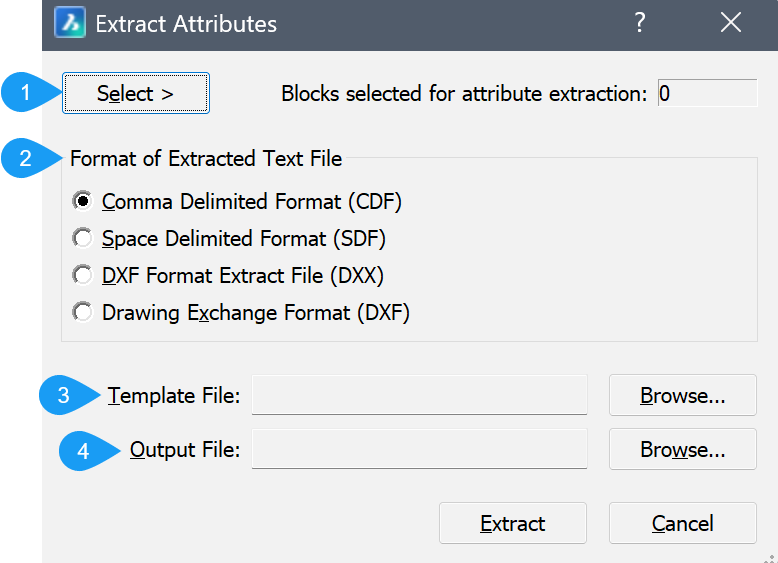

The Extract Attributes dialog box allows you to export data from block attributes to a text file.

  1. Select
  2. Format of Extracted Text File
  3. Template File
  4. Output File

Select

Specifies the set of blocks with attributes to copy data from.
Note: If blocks without attributes are selected, BricsCAD ignores them.

Format of Extracted Text File

Specifies the format of the Extracted text file. Several formats are available:

  • DXF: drawing Exchange Format

  • CDF: extract in Comma Delimited Format

  • SDF: space Delimited Format

Template File

Specifies the location path of the template file by entering the path or through the Attribute Extract Template file dialog box after pressing the Browse button.

Output File

Specifies the location path of the output file by entering the path or through the Attribute Extract Output file dialog box after pressing the Browse button.

Extract

Exports the attribute values to the output file.
