CLIPIT command (Express Tools)

Clips images, wipeouts, blocks or external references.

BricsCAD Lite; BricsCAD Pro; BricsCAD Mechanical; BricsCAD BIM

Icon:

Description

Clips images, wipeouts, blocks or external references by a clipping edge.

Note: Only polyline, circle, arc, ellipse or text entities can be used as a clipping edge.

Method

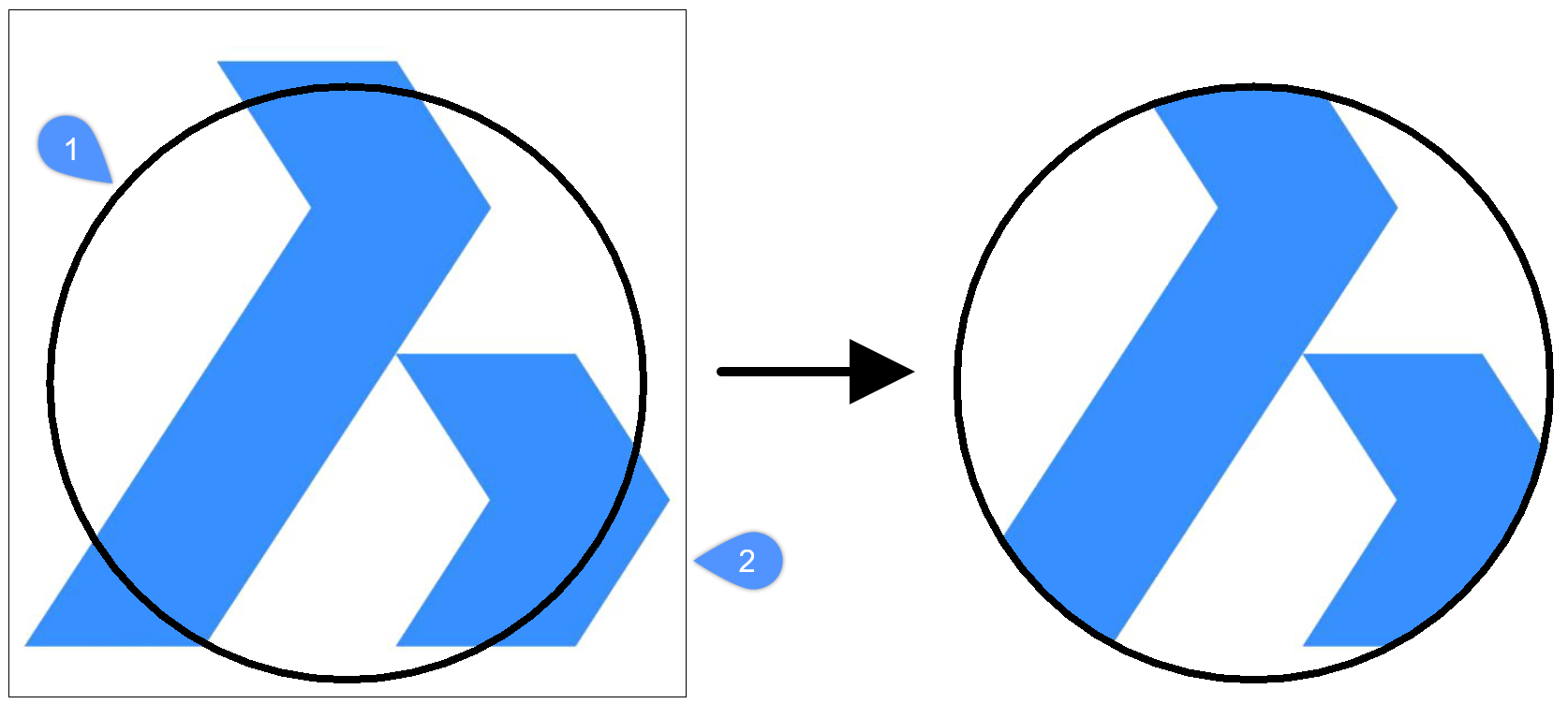

Select the clipping edge (1), then the entity to clip (2).

Enter the maximum allowable error distance for the resolution of arc segments.

Note: The default value is 0.02. A lower value gives a smoother clipping but results in a slower performance of BricsCAD when a drawing is regenerated.

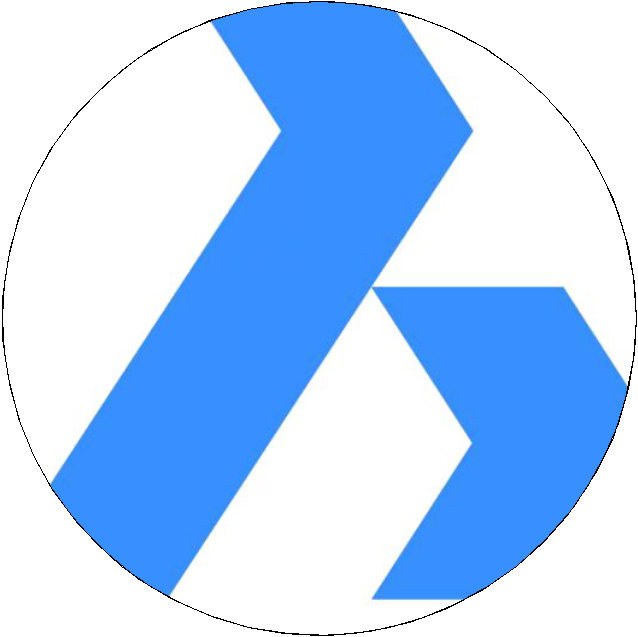

  • Error distance = 0.02

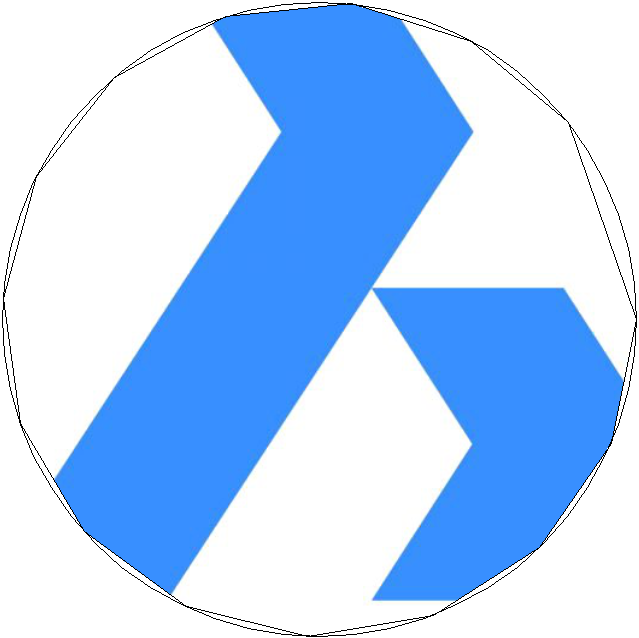

  • Error distance = 1
