TINEXTRACT command
Extracts meshes, solids, points, faces, contours, borders or intersection lines from TIN surfaces, Gradings, or Volume Surfaces.
Icon:
Description

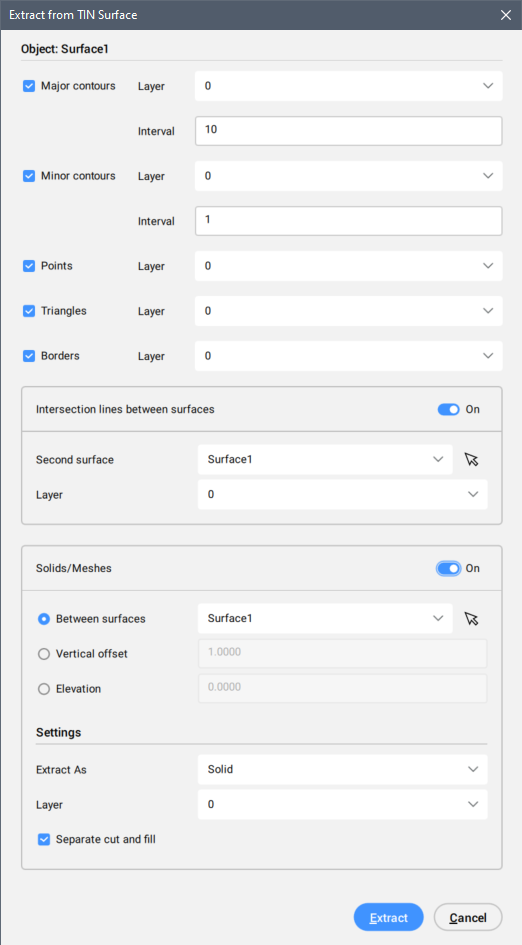

Opens the Extract from dialog box to choose which entity you want to extract from a TIN surface, a Grading, or Volume Surface.
Major contours
Extracts the contours of a TIN surface, Grading, or TIN Volume Surface for an elevation according to major contours interval set.
- Layer
- Sets the layer where the major contours will be placed.
- Interval
- Defines the major contours interval.
Minor contours
Extracts the contours of a TIN surface, Grading, or TIN Volume Surface for an elevation according to minor contours interval set.
- Layer
- Sets the layer where the minor contours will be placed.
- Interval
- Defines the minor contours interval.
Points
Extracts all points on the surface.
- Layer
- Sets the layer where the points will be placed.
Triangles
Extracts all triangular faces of the surface.
- Layer
- Sets the layer where the triangular faces will be placed.
Borders
Extracts the outer boundary of the surface.
- Layer
- Sets the layer where the outer boundary will be placed.
