XLIST command (Express Tools)

XLIST command (Express Tools)

Displays properties of entities nested in external references and blocks.

BricsCAD Lite; BricsCAD Pro; BricsCAD Mechanical; BricsCAD BIM

Icon:

Method

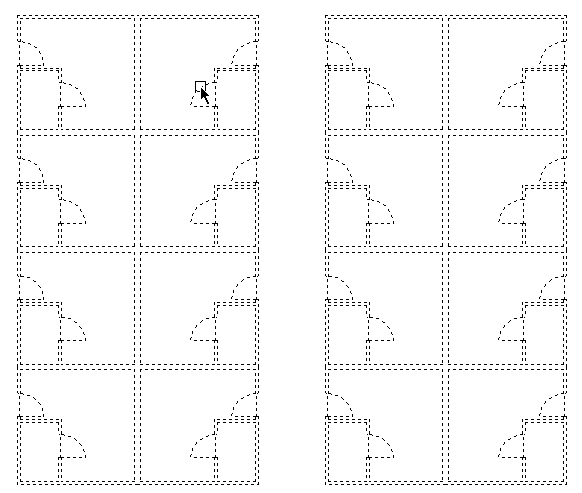

Select nested xref or block entity:

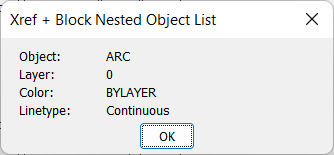

The Xref + Block Nested Object List dialog box opens and displays the properties of the selected nested entity.

Parent topic: Command reference
Related commands
  • INSERT command
  • XATTACH command
  • -XLIST command (Express Tools)
Related information
  • Express tools command overview
