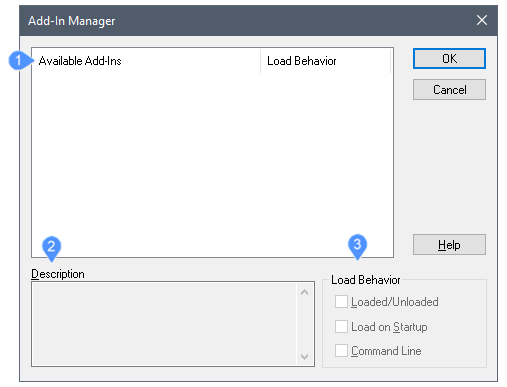

Add-In Manager dialog box

The Add-In Manager dialog box controls how Visual Basic for Applications COM (Common Object Model) modules are loaded. You can either toggle the modules between loaded and unloaded or start modules when BricsCAD starts up.

  1. Available Add-ins
  2. Description
  3. Load Behavior

Available Add-ins

Lists the names and status of VBA COM modules available to BricsCAD. "VBA COM" is short for Visual Basic for Applications Common Object Model.


Describes the selected VBA COM module, if any.

Load Behavior

Determines how modules are loaded.

Toggles the module between loaded and unloaded.
Load on Startup
Loads modules when BricsCAD starts up.
Command line
Loads modules through the Command line.
