Create Section Line Group dialog box

Opens via:

  • SECTIONLINES command
  • Create Section Lines dialog box > Section line group option > right-side three dots

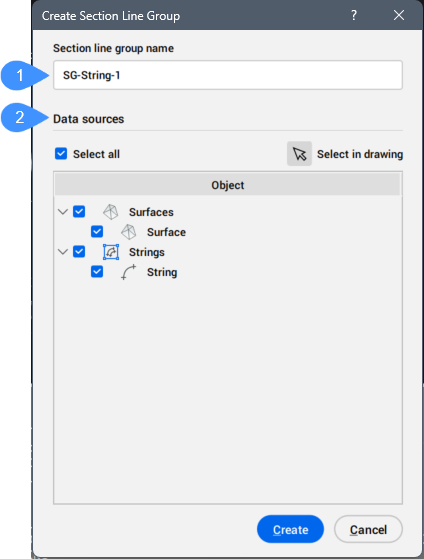

The Create Section Line Group dialog box allows you to create a section line group.

  1. Section line group name
  2. Data sources
Section line group name
Allows you to define a section line group name.
Data sources
Allows you to select the data sources that will be displayed in the section views. You can select or deselect all data sources at once or select () them in the drawing.
