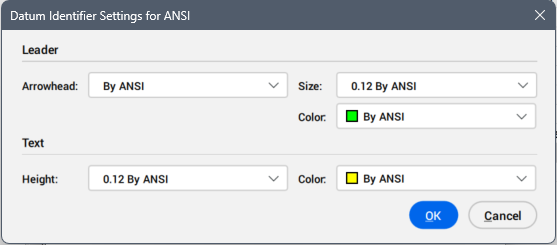

Datum Identifier Settings dialog box

Opens via: Datum Identifier dialog box > Settings... button

The Datum Identifier Settings dialog box defines the leader and text properties for all datum identifier symbols in the drawing, overriding those set in the Standard Settings dialog box.

Note: The default text, leader and symbol properties for all symbol annotations are defined in the Standard Settings dialog box.

Leader

Defines the leader properties for the datum identifier symbol.

Arrowhead
Sets the leader arrowhead type for the datum identifier symbol from the drop-down list.
Size
Sets the leader size for the datum identifier symbol from the drop-down list.
Color
Sets the leader color for the datum identifier symbol from the drop-down list.

Text

Defines the text properties for the datum identifier symbol.

Height
Sets the text height for the datum identifier symbol from the drop-down list.
Color
Sets the text color for the datum identifier symbol from the drop-down list.
