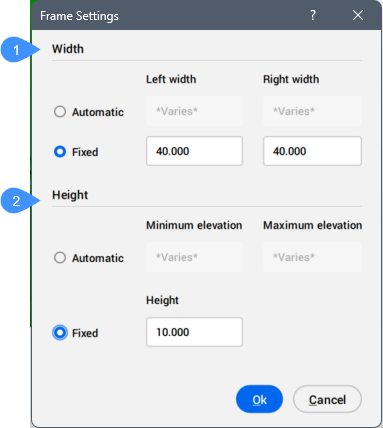

Frame Settings dialog box

Opens via: Create Section View dialog box > Frame settings button

The Frame settings dialog box allows you to adjust the frame dimensions of section views.

  1. Width
  2. Height

Width

Allows you to set the width of the section view frame.

Automatic
Automatically sets the left and right widths.
Fixed
Allows you to manually specify the left and right width values.

Height

Allows you to set the height of the section view frame.

Automatic
Automatically sets the minimum and maximum elevations.
Fixed
Allows you to manually enter a specific height value.
