Select Section Line Group dialog box

Opens via:

  • SECTIONVIEWS command > press enter key to select section line group from list option
  • SECTIONVIEWEDIT command > press enter key to select section line group from list option
  • CALCULATESECTIONVOLUMES command

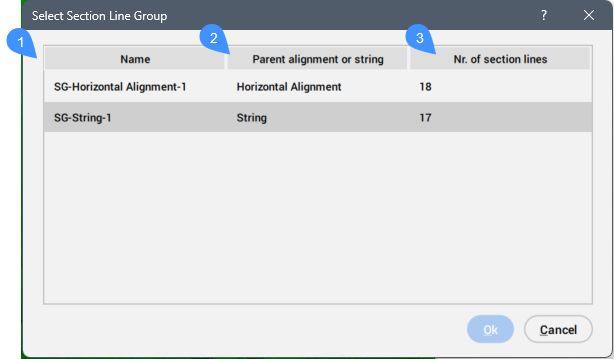

The Select Section Line Group dialog box allows you to select one of the available section line groups from the list.

  1. Name
  2. Parent alignment or string
  3. Number of section lines
Name
Displays the name of a section line group.
Parent alignment or string
Displays the parent alignment or string.
Number of section lines
Displays the number of section lines.
