APPLYAUTOMAPPING command
Updates existing civil points to reflect the active Auto Mapping definitions.
Icon:
Description
Updates existing civil points and the linework between them to reflect the active Auto Mapping definitions, without deleting and reimporting them.
Method
The command opens the Apply Auto Mapping dialog box.
Note: The auto mapping codes are generated in the Edit Auto Mapping Set dialog box and Edit Auto Mapping Command Codes Set dialog box.

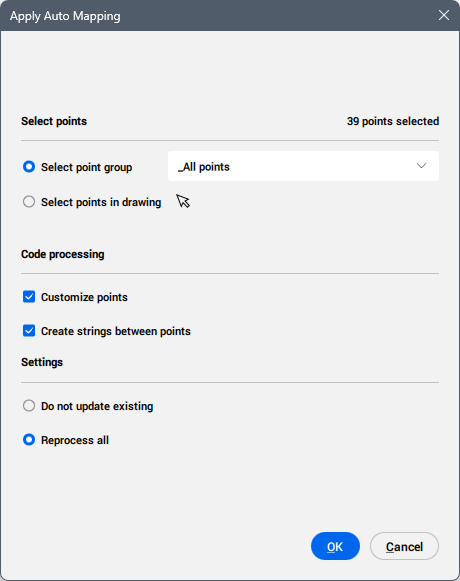

The Apply Auto Mapping dialog box configures the settings for automatically customizing points and creating strings based on point raw description and the auto mapping set.
Select points
Allows you to select one or more points to apply auto mapping to.
- Select point group
- Selects a point group from the drop-down list. The _All points group is selected by default.
- Select points in drawing
- Creates a point selection set. Click the Select points (
) button.
Code processing
Allows you configure the code processing.
- Customize points
- When selected, customizes the civil points.
- Create strings between points
- When selected, creates strings between points.
Settings
Defines the civil points to be processed.
- Do not update existing
- Does not update the existing entities.
- Reprocess all
- Updates all the existing entities.
