TORIENT command (Express Tools)

Rotates text, mtext, attribute definitions and block attribute entities to new orientation.

BricsCAD Lite; BricsCAD Pro; BricsCAD Mechanical; BricsCAD BIM

Icon:

Method

Select entities and specify the rotation angle. The entities are rotated around their middle point in 180-degree increments.

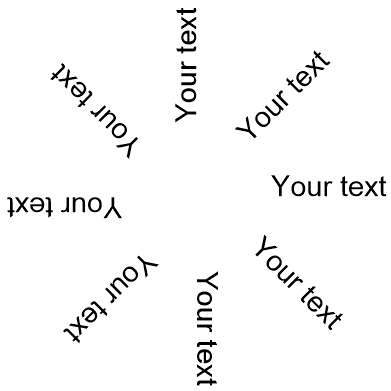

  • Original text:

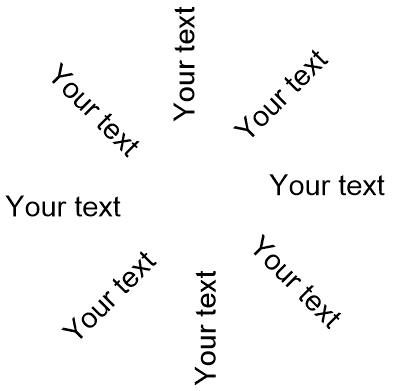

  • most Readable:

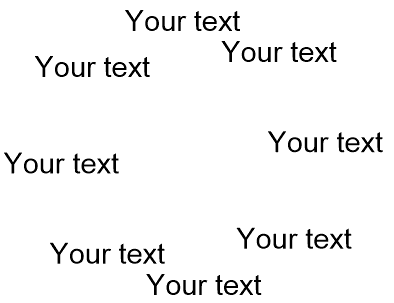

  • Specified angle of 0 degree:

Options within the command

most Readable
Orients the text in the most readable way.
Align with line
Aligns a text along a line or a polyline.
