VIEWSECTIONSTYLE command

Opens the Drawing explorer dialog box with the View Section Styles category selected.

BricsCAD Lite; BricsCAD Pro; BricsCAD Mechanical; BricsCAD BIM

Icon:

Description

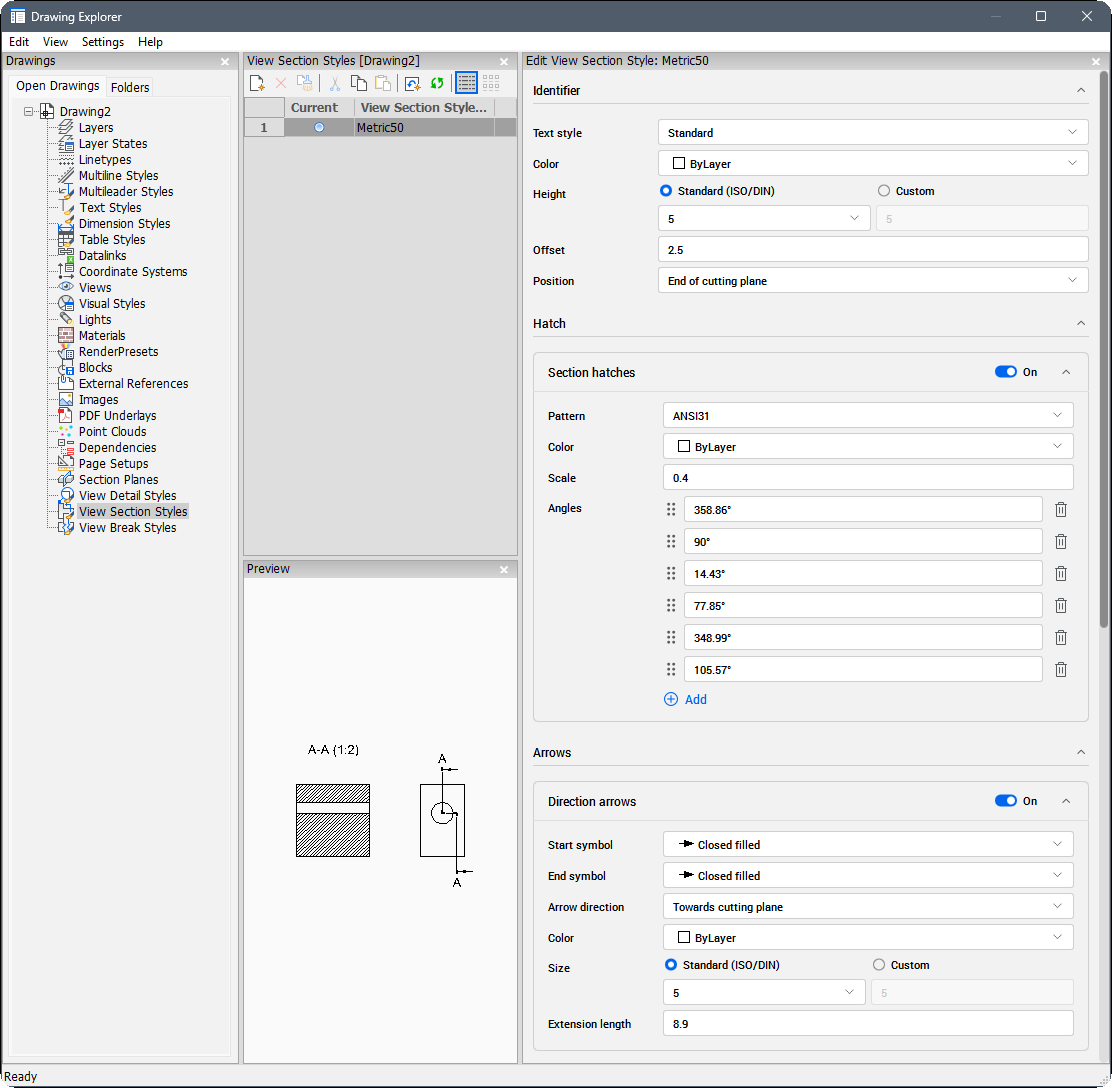

Opens the Drawing Explorer dialog box with the View Section Styles category selected to view and modify the styles in the current drawing.

The category contains the following panes:

  • View Section Styles: lists all view section styles in the drawing.
  • Edit View Section Style: allows the customization of the currently selected style.
  • Preview: previews the currently selected style.

For more information on the Drawing Explorer layout, see the Drawing Explorer dialog box article.

Method

Select a style in the View Section Style pane to display and modify its options in the Edit View Section Style pane, or to preview it in the Preview pane.

Options within the Edit View Section Style pane

Identifier
Text Style
Specifies the text style used by the identifier text. To add a different text style, use the STYLE command to create it.
Color
Lists the available colors. Click the Select color... option from the drop-down list to open the Color dialog box.
Height
Specifies the height of the identifier.
Standard (ISO/DIN)
Sets the height value to standard dimensions. Choose a value from the drop-down list.
Custom
Sets the height value to a custom dimension.
Offset
Specifies the distance between the end lines and the identifiers.
Position
Determines where the identifiers are located.
End of cutting plane
Places the identifiers at the end of the cutting planes.
Above direction arrow line
Places the identifiers outside the section boundary, positioning one above and one below the arrow line.
Above direction arrow symbol
Places the identifiers outside the section boundary, positioning one above and one below the arrow symbol.
Start of direction arrow
Places the identifiers at the start of the arrows.
End of direction arrow
Places the identifiers at the end of the arrows.
Hatch
Section hatches
Toggles the display of section hatching.
Pattern
Chooses a hatch pattern from the drop-down list.
Color
Lists the available colors. Click the Select color... option from the drop-down list to open the Color dialog box.
Scale
Chooses the hatch scale.
Angles
Sets the angle for the hatch pattern.
Add
Adds angles to the list.
Delete
Deletes the selected angle from the list.
Note: The first angle in the list is assigned to the first hatch, the second angle to the second hatch, and so on. If there are more sections than angles, the program cycles back to the first angle.
Arrow
Direction arrows
Toggles the display of section arrows.
Start symbol
Specifies the look of the start symbol.
End symbol
Specifies the look of the end symbol.
Arrow direction
Specifies the direction of the arrow.
Towards cutting plane
Sets the direction of the arrow towards the cutting plane.
Away from cutting plane
Sets the direction of the arrow away from the cutting plane.
Color
Lists the available colors. Click the Select color... option from the drop-down list to open the Color dialog box.
Size
Specifies the size of the arrow.
Standard (ISO/DIN)
Sets the height value to standard dimensions. Choose a value from the drop-down list.
Custom
Sets the height value to a custom dimension.
Extension length
Specifies the length of the arrows.
Cutting Plane
Plane lines
Toggles the display of cutting plane lines.
Linetype
Lists the available patterns. Click the Load... option from the drop-down list to open the Load Linetypes dialog box.
Line color
Lists the available colors. Click the Select color... option from the drop-down list to open the Color dialog box.
Lineweight
Specifies the weight of the lines.
End and bend lines
Toggles the display of end and bend lines.
Linetype
Lists the available patterns. Click the Load... option from the drop-down list to open the Load Linetypes dialog box.
Line color
Lists the available colors. Click the Select color... option from the drop-down list to open the Color dialog box.
Lineweight
Specifies the weight of the lines.
Bend line length
Specifies the length of the bend line.
End line length
Specifies the length of the end lines.
End line overshoot
Specifies the distance from the section to the end of the plane line.
Label
View label
Toggles the display of labels.
Text style
Choose the style of the text from the drop-down list.
Color
Lists the available colors. Click the Select color... option from the drop-down list to open the Color dialog box.
Height
Specifies the height of the label.
Standard (ISO/DIN)
Sets the height value to standard dimensions. Choose a value from the drop-down list.
Custom
Sets the height value to a custom dimension.
Offset
Specifies the distance between the section view and the label.
Position
Determines where the label is located.
Above view
Places the label above the section view.
Below view
Places the label below the section view.
Note: Each option section and subsection is collapsible. Click the arrow next to a section or subsection name to collapse it. Toggling off a subsection automatically collapses it.
