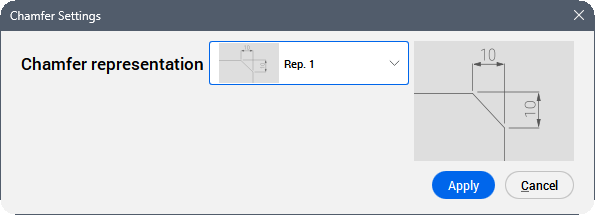

Chamfer Settings dialog box

Opens via:

  • PDIM command > chaMfer option > Representation option
  • AMPOWERDIM_CHAM command

The Chamfer Settings dialog box sets the chamfer representation for the chamfer dimension.

Chamfer representation

Opens a drop-down list to select a chamfer representation.

Preview

Displays a preview of the selected representation.
