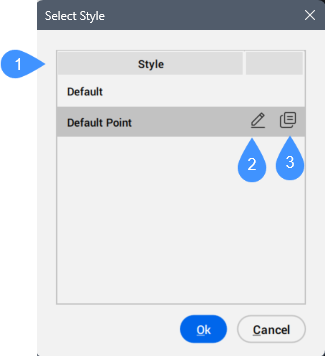

Select Style dialog box

Opens via:

  • CIVILPOINT command > Create Civil Points dialog box > Symbol Style option > press the right-side three dots
  • CIVILPOINT command > Create Civil Points dialog box > Label Style option > press the right-side three dots
  • SECTIONLINES command > Create Section Lines dialog box > Labels Style option > press the right-side three dots
  • SECTIONVIEWS command > Create Section View dialog box > Style option > press the right-side three dots
  1. Style list
  2. Edit style...
  3. Copy style...

Style list

Displays the available styles.

Edit style...

Opens the Symbol Style, Label Style Editor , or Section View Style dialog box to edit selected symbol, label, or section view style.

Copy style...

Opens the Symbol Style, Label Style Editor , or Section View Style dialog box to create a copy of the selected symbol, label, or section view style.

Note: The symbol and label styles are defined in the Settings tab of the Civil Explorer panel.
