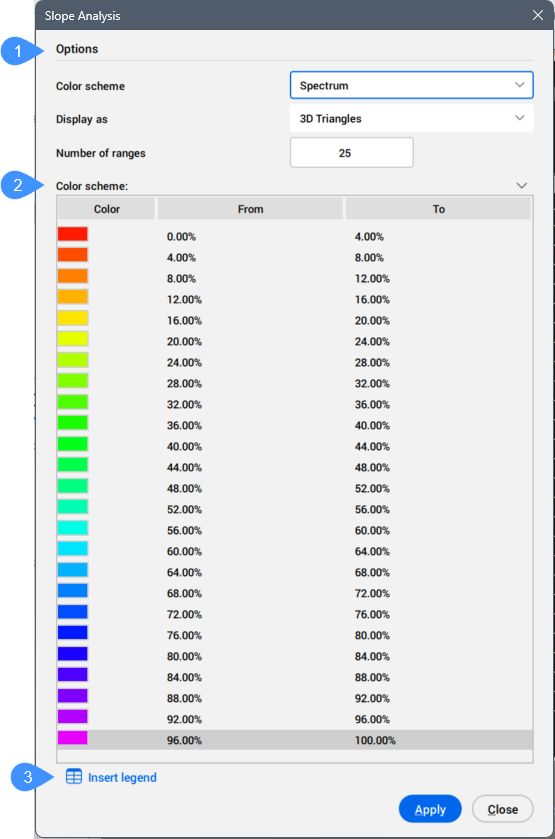

Slope Analysis dialog box

Opens via: (only for selected TIN surface entities) Civil Explorer panel > Visual Styles tab > TIN Analysis section > Slope analysis > click the right side three dots

The Slope Analysis dialog box allows you to define parameters for creating the TIN surface Slope Analysis

  1. Options
  2. Color scheme
  3. Insert legend

Options

Allows you to specify the parameters for creating the TIN surface Slope Analysis.

Color Scheme
Allows you to select the color scheme for the Slopes Analysis.

Choose between the available options:

  • Spectrum
  • Earth
  • Hydro
  • Gray
  • Reds
  • Greens
  • Blues
  • Custom
DisplayAs
Select the TIN Surface elements used to create the Slopes Analysis.
Choose between the available options:
  • 3D Triangles
  • 2D Triangles
Number of ranges
Specifies the number of ranges for the Slope Analysis.

Color scheme

Displays the corresponding colors for slopes based on the selected color scheme.

Note: You can edit the slope values in the table.

Insert legend

Inserts the color scheme table at a specified location in the drawing.
