The Quad cursor menu

The Quad cursor menu, aka the Quad is a context sensitive graphic menu which allows you to easily edit, select, show or hide and create entities. The content of the Quad is defined in the workspace and is fully customizable.

Activating the Quad

Activation of the Quad is controlled by the QUADDISPLAY system variable.

To turn the Quad on or off, do one of the following:

  • Click the QUAD field in the Status Bar.
  • Press the F12 function key.

Setting the Quad display options

Right-click the QUAD field in the Status Bar, then choose an option in the context menu.

  • Show Quad on Hover.
  • Show Quad on Select.
  • Show Quad on Right Click: displays the No Selection Quad which allows you to create entities.
  • Suppress Quad on Hover When Entities are Selected.
Note: When the SELECTIONPREVIEW system variable is Off, the Display the Quad when the cursor hovers over an entity option of the QUADDISPLAY system variable is ignored, and the Quad is not displayed.

Editing the Quad settings

Right-click the QUAD field in the Status Bar, then choose Settings in the context menu.

The Settings dialog box opens, showing the Quad settings screen.

Using the Quad

When you hover the cursor over an entity, the entity is highlighted and the Quad displays the most recently used command with this entity type.

If multiple entities are under the cursor, repeatedly press the Tab key to highlight all entities one by one.

If Rollover Tips (RT) = On, the properties of the entity under the cursor are displayed next to the default command icon in the Quad.

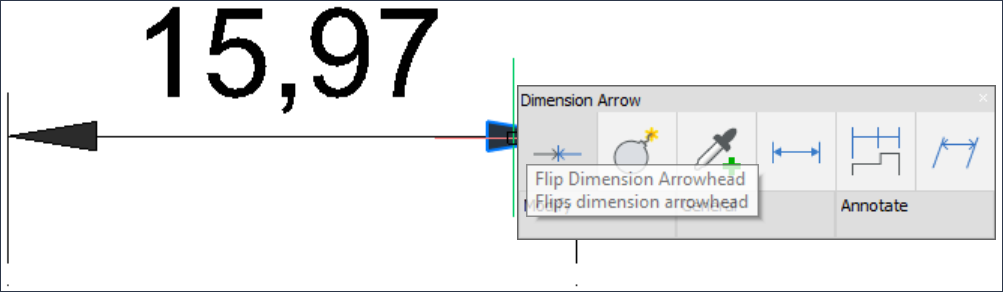

When you hover the cursor over a Dimension entity and press the Ctrl key, the subentities arrow or text can be highlighted and then selected. The Quad displays the most appropriate commands for the selected subentity type. For example, when a Dimension Arrow is highlighted, the Quad proposes the Flip Dimension Arrowhead tool.

If Rollover Tips (RT) = On, the Dimension Arrow and Dimension Text properties are displayed next to the default command icon in the Quad.

Note: The Hotkey Assistant widget indicates the current selection mode, Select Dimension entity or Select Dimension subent.

Launching the default command

  • If QUADCOMMANDLAUNCH = 1, right-click without entering the Quad to launch the command.
  • If QUADCOMMANDLAUNCH = 0, click the command button.

Launching a different command

Move the cursor to the default command to expand the Quad: the 6 most recently used commands that apply to the selected entity are displayed. The number of columns that appear is set by the QUADWIDTH system variable (default = 6).

Other commands that apply to the selected entity sit in a number of tabs. Move the cursor over a tab to expand its content.

Click an icon to launch the command.

Note: Click the title bar of the Quad to go back and forth between the Quad commands and the Rollover Tips.

Selecting multiple entities

  1. Move the cursor over the first entity, then click when the entity highlights.

    The entity is selected and remains highlighted.

  2. Move the cursor to another entity, then click when the entity highlights.

    The entity is added to the selection set and remains highlighted.

  3. (option) Repeat step 2 to select more entities.
  4. (option) Move the cursor to a selected entity, then press and hold the Shift key and click.

    The entity is removed from the selection set.

Note:
  • When working with solids, the SELECTIONMODES system variable controls which subentities are detected: edges, faces and/or boundaries.

    Holding down the Ctrl key inverts the current selection mode.

  • Activate detection of 3D solid edges
  • Activate detection of 3D solid faces
  • Activate boundary detection

  • Repeatedly press the Tab key to highlight all entities or subentities under the cursor one by one.

Using the Quad to create entities

If flag 4 (= Display the Quad on right-click) of the QUADDISPLAY system variable is set, entity creation commands are available in the Quad (No Selection Quad). Right-click the QUAD field in the Status Bar and check the option in the context menu.

When the cursor is over an entity, hold down the right mouse button longer to display the No Selection Quad.

The available entity creation commands in the Quad are:

  • The most recently used entity creation commands.
  • A number of command group tabs, depending on the current workspace.
