MVIEW command
Creates one or more viewports in Paper space (short for "make viewports") to display entities drawn in Model space. Each viewport can have its own settings, shown below.
![BricsCAD Lite; BricsCAD Pro; BricsCAD Mechanical; BricsCAD BIM](https://static.bricsys.com/help/images/V23/en_INTL/command-reference-lite-pro-mechanical-bim.png)
Icon:
Alias: MV
Note: This command operates only in Paper Space.
Note: To create viewports in Model space, use the VPORTS command.
Description
Specifies the first and the opposite corners to create a rectangular viewport.

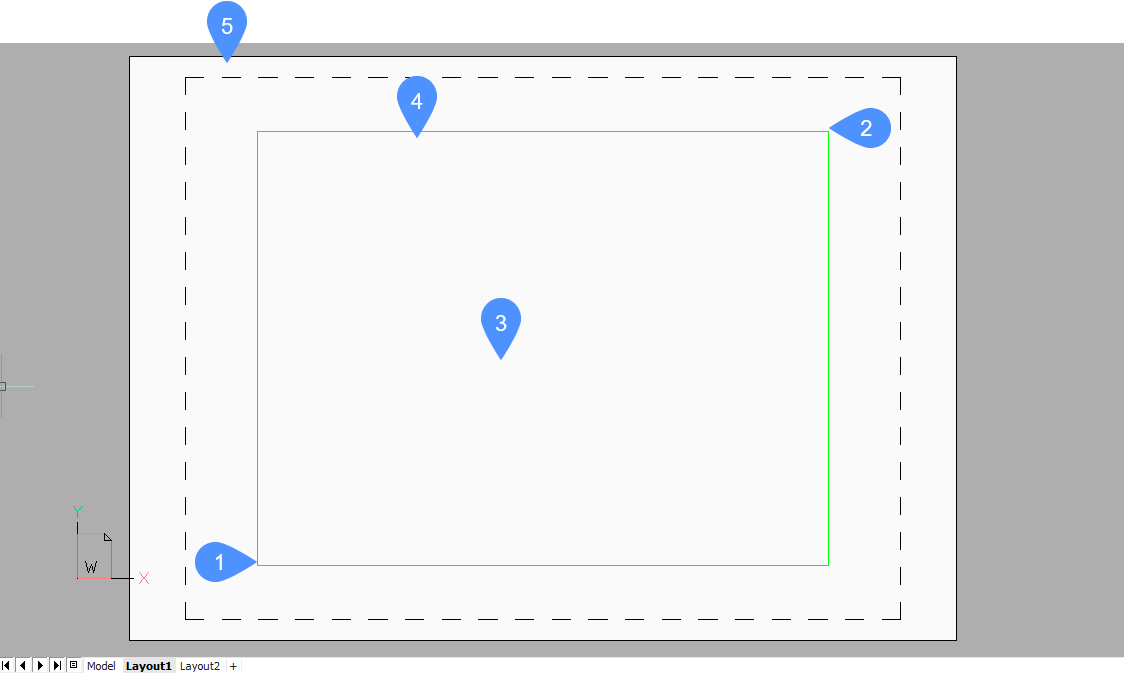

![](https://static.bricsys.com/help/images/V23/en_INTL/CMD_MView02.png)
- First corner
- Opposite corner
- Viewport
- Viewport border
- Paper space (Layout)
Options within the command
- ON
- Turns on viewports that are turned off.
- OFf
- Turns off viewports.
- Lock
- Locks the viewport's scale factor.
- Fit
- Draws a rectangular viewport that fits the current layout.
- create 2 viewports
- Draws two rectangular viewports.

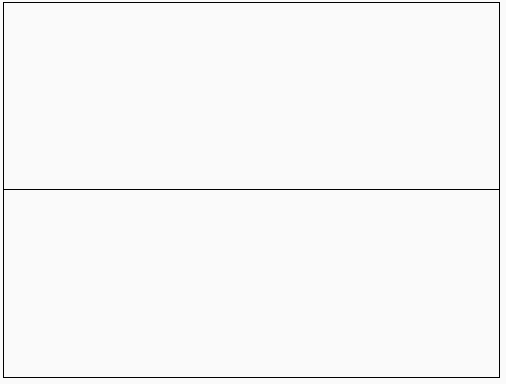

- Horizontal
- Draws two horizontal viewports of equal size.

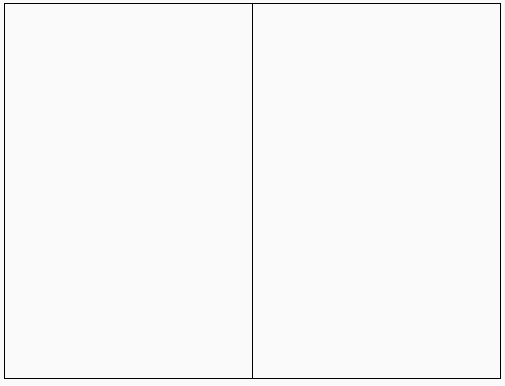

- Vertical
- Draws two vertical viewports of equal size.
- create 3 viewports
- Draws three rectangular viewports.

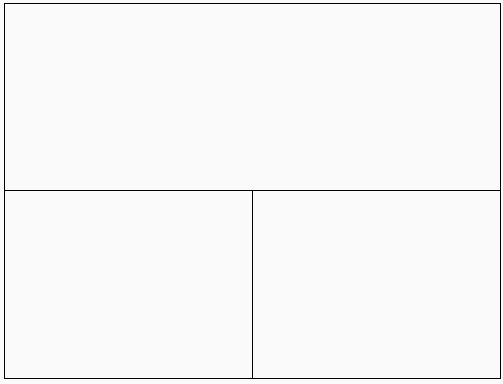

- Above
- Draws one viewport above two side-by-side viewports.

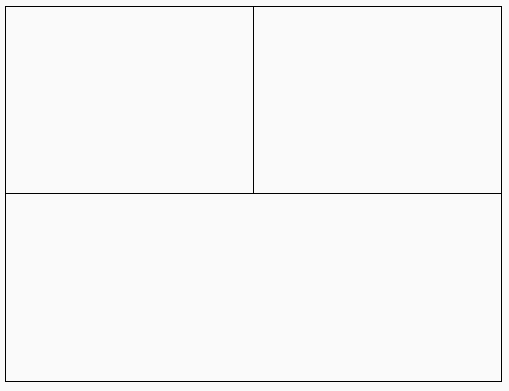

- Below
- Draws one viewport below two side-by-side viewports.

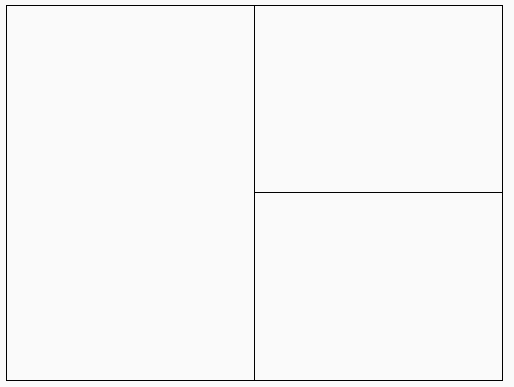

- Left
- Draws one viewport to the left of two stacked viewports.

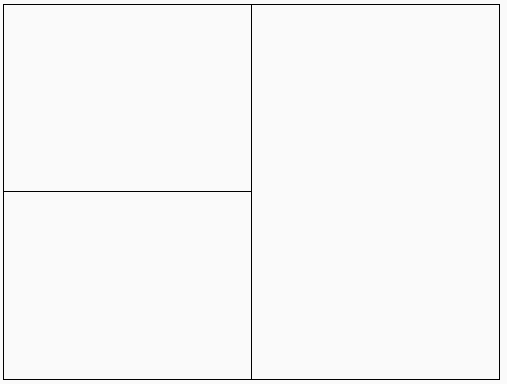

- Right
- Draws one viewport to the right of two stacked viewports.

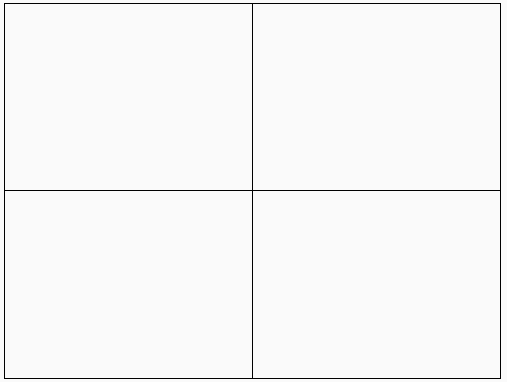

- create 4 viewports
- Draws four rectangular viewports of equal size.
- Object
- Converts an object into a viewport border.

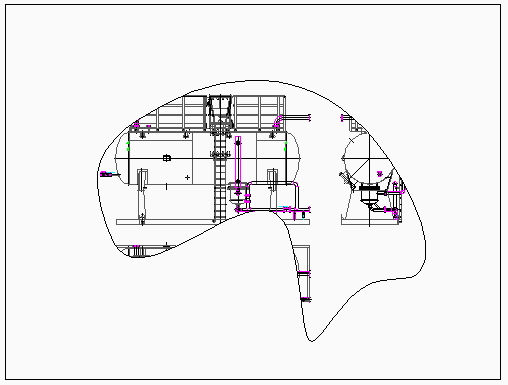

- Polygonal
- Draws non-rectangular viewports made of lines and arcs.
- draw Arcs
- Enters arc drawing mode; options from ARC command are activated.
- draw Lines
- Enter line drawing mode; options from LINE command are activated.
- Distance
- Draws the next line segment at a specified distance and angle.
- Follow
- Draws the next line segment at the same angle.
