ADDSECTIONVIEWLABELS command
Adds offset elevation labels or slope labels to a section view.
Icon:
Method

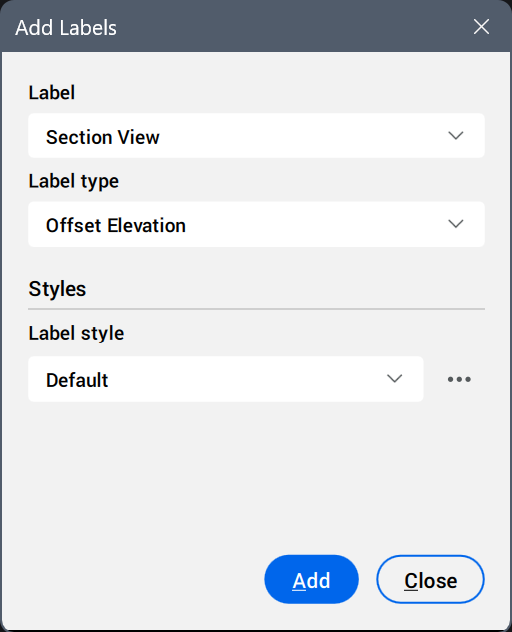

The command opens the Add Labels dialog box with the Section View label selected.
This dialog box is modeless, so you can continue working in the drawing while it is open.
Select the Label type and Label style.
Click the Add button or press Enter. The dialog box closes.
Select the section view to add labels to. Click to place labels.
Press Enter or Esc to display the dialog box.
Click the Close button or press Esc to end the command.
- Label
- Displays the preselected label, according to the command used.
- Label type
- Sets the label type.
- Offset Elevation
- Sets the section view offset label style name and selects the position.
- Slope
- Sets the section view slope label style name and selects the position.
- Styles
- Sets the label style and/or symbol style.
Click the Select style... button (
) to display the available styles in the Select Style dialog box.Tip: To edit styles or create new ones, click the Edit style... or Copy style... button next to a style in the Select Style dialog box. This opens the Label Style Editor dialog box.
